C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger

  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
  • C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger
Lugar de origem Xangai,China
Marca TOBO
Certificação ISO/TUV/SGS
Número do modelo Tubo de Cobre Níquel
Quantidade de ordem mínima 1 unidade
Preço Negociável
Detalhes da embalagem Pacote de Envio Padrão
Tempo de entrega 15-30 dias de trabalho
Termos de pagamento T/T, União Ocidental
Habilidade da fonte 10 toneladas/mês
Detalhes do produto
Nome do produto Tubo sem costura de cobre e níquel C71500, precisão para trocador de calor Usos Decoração da construção
Força de rendimento Alto Conexão Soldagem
Classificação de temperatura 400°F Usinabilidade Bom
Métodos de adesão Soldar, soldar, soldar Técnica Tirados a frio, laminados a quente
Produto Tubo de Cobre Níquel Técnica Fundição
Faixa de diâmetro 1/2 polegada a 24 polegadas Material Composição Liga de cobre-níquel (geralmente 90/10 ou 70/30 Cu-Ni)
Aplicativo Ar condicionado ou geladeira Tamanho Personalizado
Espessura da parede Cronograma 10 ao Cronograma 40 Entrega de acordo com a quantidade
Deixe um recado
Descrição de produto

C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger



1.Product Introduction



Copper nickel pipe is a high‑performance alloy tube manufactured from Cu‑Ni systems, primarily grades 90/10 (C70600) and 70/30 (C71500), with controlled additions of iron and manganese. Available in seamless and welded forms, it complies with ASTM B466, ASTM B111, ASME SB111, EN 12451 and JIS H3300. It is the preferred material for seawater and corrosive fluid handling.



2.Product Advantages

  • Outstanding resistance to seawater, brackish water, and brine corrosion.

  • Natural biofouling protection – copper ions inhibit marine organism attachment.

  • High resistance to erosion‑corrosion and impingement attack.

  • Excellent weldability, formability, and thermal conductivity.

  • Exceptional longevity – proven service life over 50 years in marine systems.

  • Immune to chloride stress‑corrosion cracking (SCC).

  • Lower weight than steel for equivalent pressure ratings.

  • More economical than titanium or high‑nickel alloys.



3.Product Applications

  • Shipbuilding & offshore – seawater cooling, ballast, fire‑fighting, and sanitary piping.

  • Oil & gas platforms – topside process lines, subsea umbilicals, and riser cladding.

  • Desalination – evaporator tubes and brine heaters.

  • Power generation – condenser tubes and cooling water circuits.

  • Industrial heat exchangers – chemical, petrochemical, and food processing.

  • Marine renewable energy – tidal/wave generator cooling systems.

  • Aquaculture – seawater supply and fish cage structures.

  • Automotive & aerospace – brake lines, power steering tubes, and aircraft ducting.

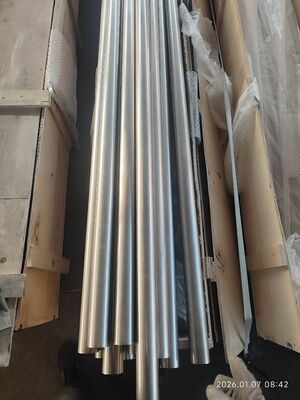

​C71500 Copper Nickel Seamless Tubing, Precision for Heat Exchanger 0

4.Key Product Parameters

Parameter 90/10 (C70600) 70/30 (C71500)
Composition (wt%) Cu ≥88.6, Ni 10, Fe 1.4, Mn 0.8 Cu ~70, Ni ~30, Fe 0.6, Mn 0.5
Tensile Strength (MPa) 303 – 414 350 (typical)
Yield Strength Rp0.2 (MPa) 110 – 393 (temper dependent) 120 (typical)
Elongation (%) 42 35
Elastic Modulus (GPa) 140 140
Thermal Conductivity (W/m·K) 50 29
Density (g/cm³) 8.90 8.95
Melting Range (°C) 1080 – 1120 1170 – 1240
OD Range – Seamless (mm) 6 – 159 6 – 159
OD Range – Welded (mm) up to 419 up to 419
Wall Thickness – Seamless (mm) 0.5 – 8.0 0.5 – 8.0
Wall Thickness – Welded (mm) up to 10.0 up to 10.0
Standard Lengths 6 m, 12 m, or custom 6 m, 12 m, or custom



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
