Custom Copper Nickel Pipe Fittings C70600 90/10 Elbow Tee Reducer Flange
| Lugar de origem | Xangai, China |
|---|---|
| Marca | TOBO |
| Certificação | ISQ/TUV/SGS |
| Número do modelo | Cotovelo de cobre e níquel |
| Quantidade de ordem mínima | 1 unidade |
| Preço | Negociável |
| Detalhes da embalagem | Pacote de Envio Padrão |
| Tempo de entrega | 15-30 dias de trabalho |
| Termos de pagamento | T/T, União Ocidental |
| Habilidade da fonte | 10 dez/mês |
Detalhes do produto
| Nome do produto | Cotovelo de cobre e níquel | Classificação de temperatura | -196°C a 300°C |
|---|---|---|---|
| Força | Alto | Classificação de pressão | 150 - 3000 PSI |
| Padrão | ASMEB16.5 | Faixa de tamanho | 1/2 polegada a 24 polegadas |
| Acabamento de superfície | Em acar, saboreamento, passivação | Ângulo | 45 graus ou 90 graus |
| Destacar | Custom Copper Nickel Pipe Fittings,C70600 Copper Nickel Elbow,90/10 Copper Nickel Flange |
||
Descrição de produto

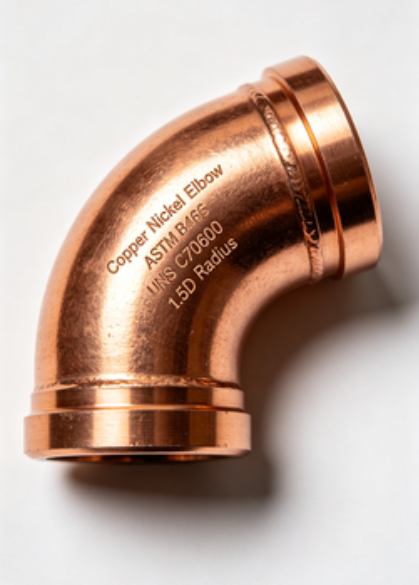

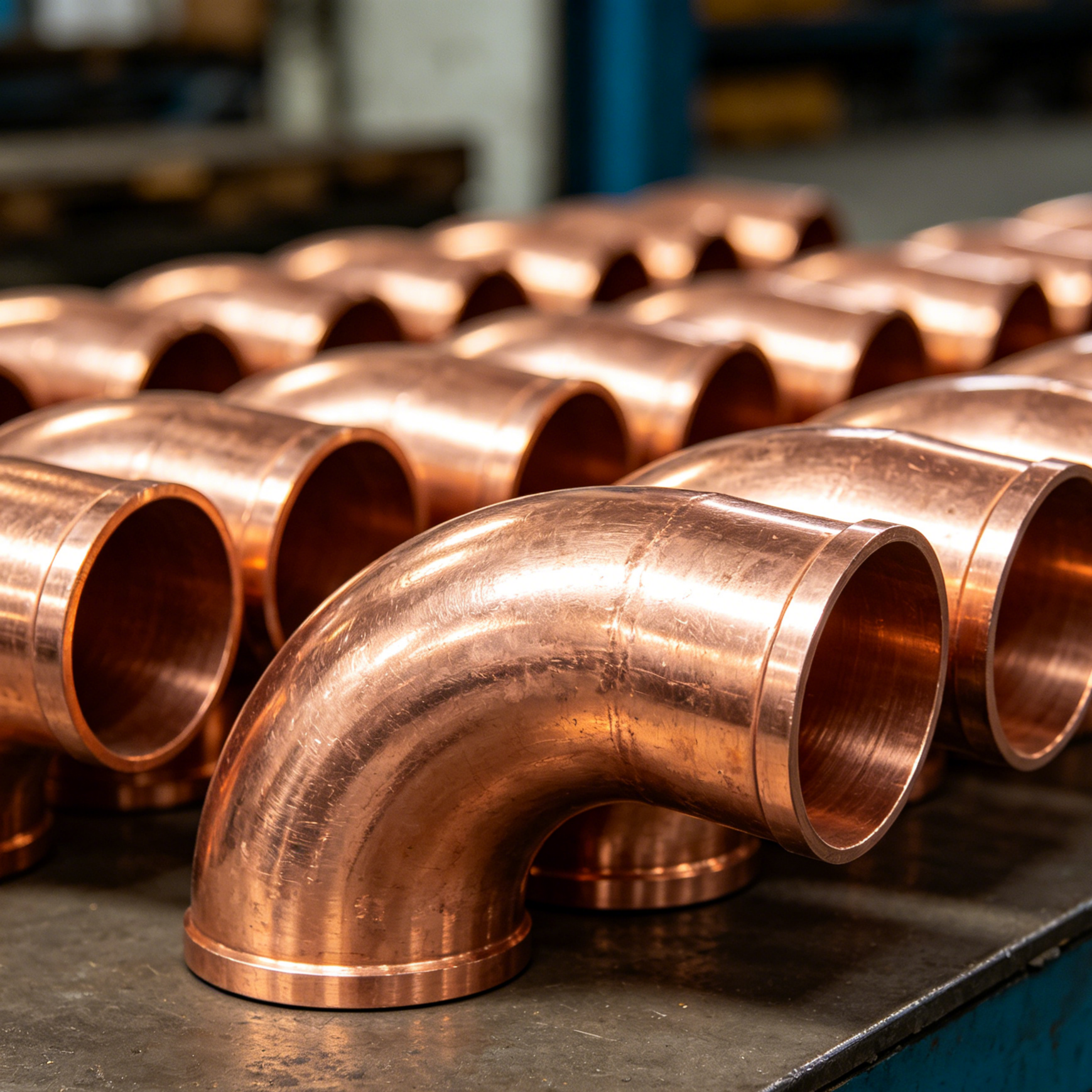

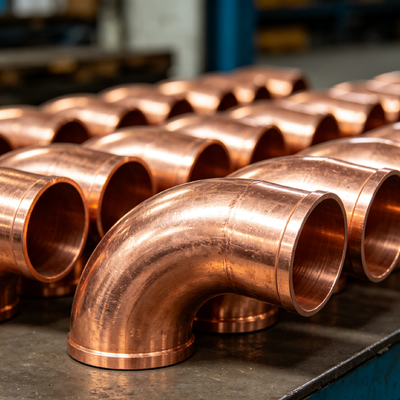

Custom Copper Nickel Pipe Fittings C70600 90/10 Elbow Tee Reducer Flange
Product Description
Our Custom Copper Nickel C70600 (90/10) Pipe Fittings are precision-engineered for demanding marine, offshore, and industrial seawater applications. Manufactured from high-grade UNS C70600 alloy—the industry standard for seawater piping—these fittings deliver an optimal balance of corrosion resistance, mechanical strength, and long-term reliability.
Available in Elbows (45°/90°/180°), Tees, Reducers, Flanges, Caps, and Stub Ends, our fittings comply with ASTM B466, ASME B16.9, EEMUA 144, and DIN 86019. We support Butt Weld, Socket Weld, and Threaded connections, sizes from 1/2" to 24" NB, and schedules Sch 5S to XXS. Full customization—special angles, tolerances, markings, and machining—is available with 100% material traceability.
2. ⚙️ Key Technical Parameters
| Property | C70600 Specification |
|---|---|
| Composition | Cu (≥88.6%), Ni 9.0–11.0%, Fe 1.0–1.8%, Mn 0.5–1.0% |
| Tensile Strength | 290–345 MPa (min 38–50 ksi) |
| Yield Strength | 105–135 MPa (min 13–40 ksi) |
| Elongation | 30–45% |
| Hardness | 60–90 HRB |
| Density | 8.94 g/cm³ |
| Size Range | 1/2" – 24" NB (DN15 – DN600) |
| Schedule | Sch 5S, 10S, 40S, 80S, 160S, XXS |
3. 🔥 Why Choose C70600 90/10?
⚓ Unmatched Corrosion Resistance – Forms a protective oxide film providing outstanding resistance to general corrosion, pitting, and crevice attack. Long-term corrosion rates stabilize below 2.5 µm/year in seawater, with excellent erosion resistance at flow velocities up to 3.0–3.5 m/s.
🛡️ Superior Biofouling Resistance – Continuous release of cuprous ions retards marine organism settlement. This natural self-cleaning characteristic eliminates costly cleaning procedures and reduces chlorine treatment requirements.
🔥 Wide Temperature Range – Maintains structural integrity up to 260°C while retaining ductility and impact strength even at cryogenic temperatures (-196°C) —ideal for heat exchangers, condensers, and evaporators.
🛠️ Excellent Weldability – Single-phase FCC structure ensures no phase transformation during welding. Compatible with TIG, MIG, and oxyacetylene welding with no post-weld heat treatment required.
📋 Full Traceability – Every fitting includes MTC 3.1, heat number traceability, and marine classification certificates (DNV-GL, ABS, Lloyd's Register) upon request.
4. 🏭 Primary Applications
| Sector | Applications |
|---|---|
| Marine & Shipbuilding | Seawater piping, ballast systems, firewater, cooling |
| Desalination | Intake/outlet lines, evaporator tubes |
| Offshore Platforms | Hydraulic lines, seawater risers |
| Power Generation | Condenser tubes, heat exchangers |
5. 📦 Packaging, Payment & Delivery
Packaging: VCI paper wrapping + plastic end caps + seaworthy wooden crates
Payment: T/T (30% deposit + 70% balance) or L/C at sight
Lead Time: 25–30 days (standard); 7–15 days (samples)
MOQ: 1 piece
Shipping: FOB/CIF/EXW/CFR with full insurance and tracking
6. 🔧 Installation & After-Sales
Installation: Clean surfaces before installation; TIG/MIG welding recommended; no post-weld heat treatment needed. Avoid direct contact with carbon steel in wet environments.
Storage: Keep in clean, dry, well-ventilated areas; protect threads and ends during transport.
After-Sales: Full replacement for non-conforming material upon verified inspection. Returns accepted within 15 days for quality-related issues. Lifetime technical consultation available.
📞 Contact Us Today
Whether you need standard stock or fully customized fittings, our team is ready to support your project with competitive pricing, reliable quality, and on-time delivery.
Request your quote now! Provide your specifications and we will respond within 24 hours.
