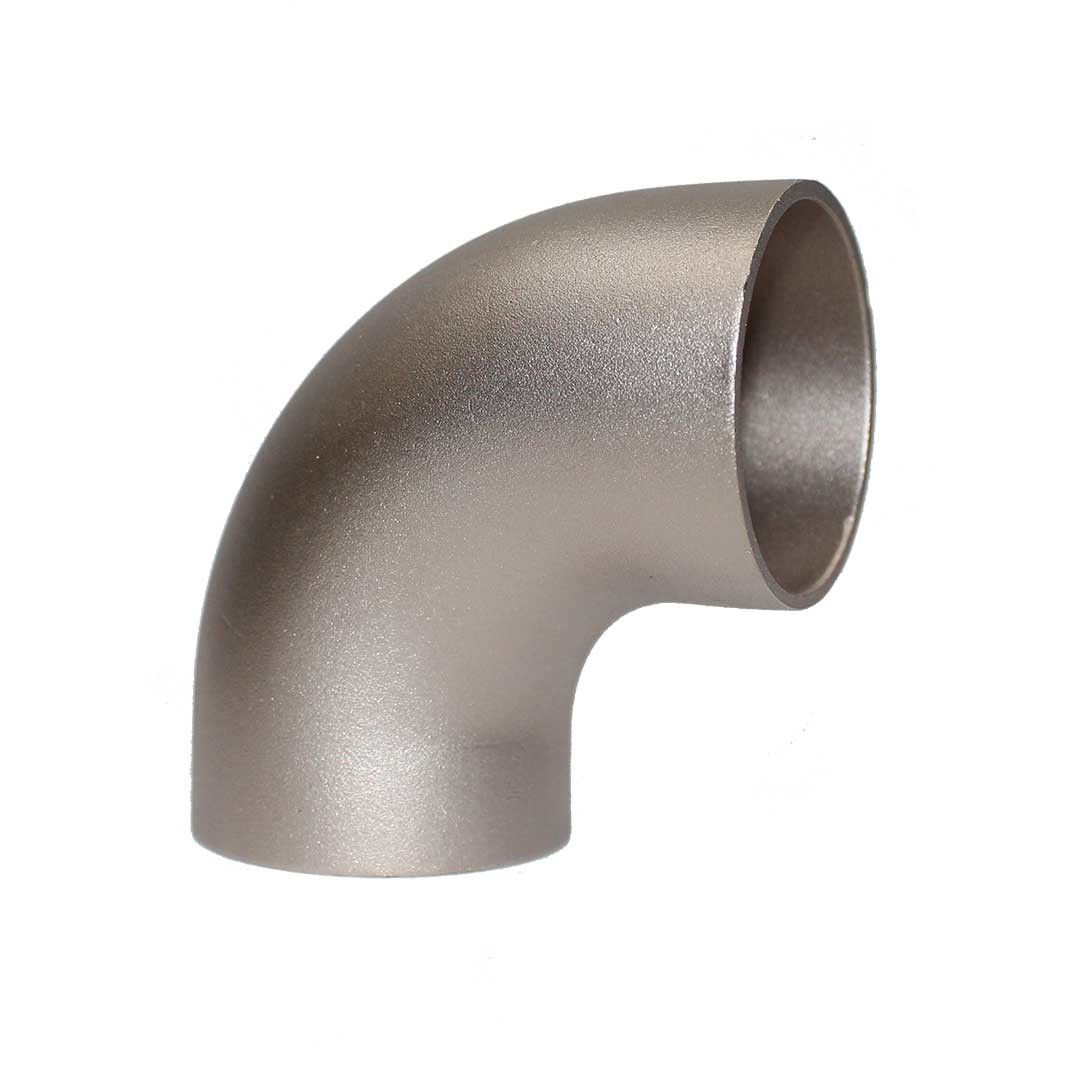

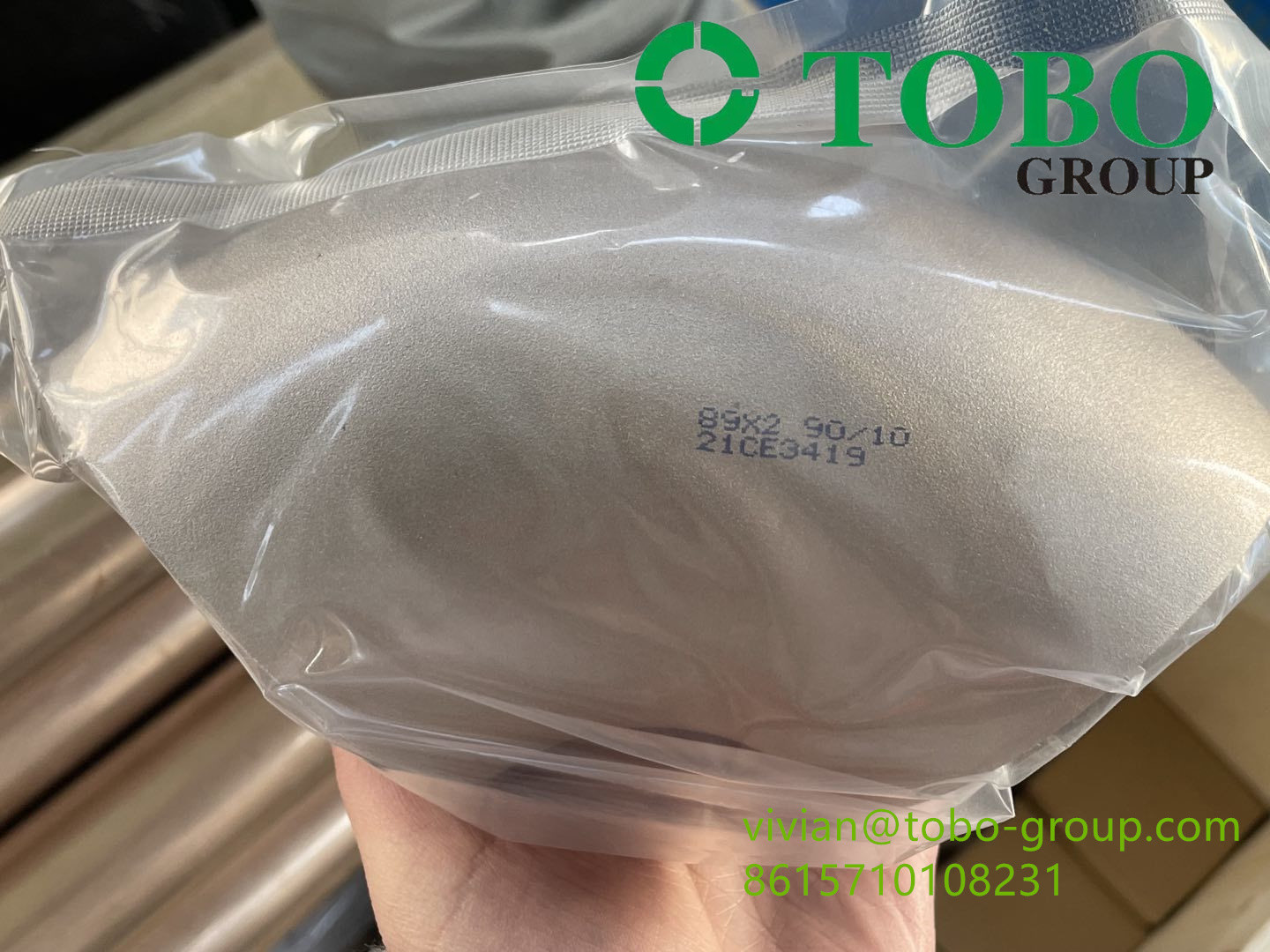

ISO Certified Industrial Grade Nickel Elbow Fittings, 45/90 Degree , Chemical Resistance
| Lugar de origem | China |
|---|---|
| Marca | TOBO Group |
| Certificação | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Número do modelo | Cotovelo de cobre e níquel |
| Quantidade de ordem mínima | 1 unidade |
| Preço | Depending on quantity |
| Detalhes da embalagem | Embalagem digital de exportação padrão |
| Tempo de entrega | 25-30 dias segundo a quantidade |
| Termos de pagamento | T/T, L/C, Western Union |
| Habilidade da fonte | 3,0000pcs pelo mês |
Detalhes do produto

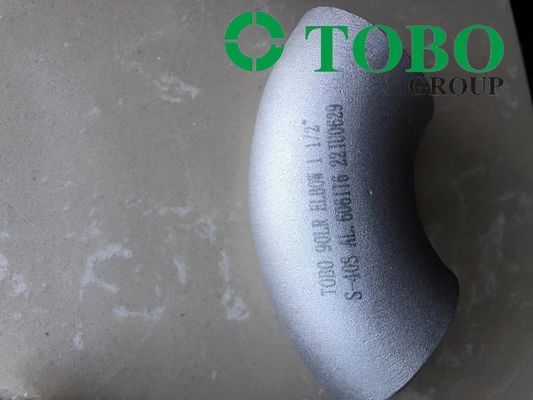

| Nome do produto | Cotovelo de 90 LR | forma | cano |
|---|---|---|---|
| Tipo de conexão | Cotovelo | Terminar conexão | Solução de extrusão |
| Porta | Shanghai, Ningbo, etc. | Soldabilidade | Bom |
| classificação de temperatura | Até 450 ° F. | embalagem | Pacote padrão em condições de navegar |
| Faixa de tamanho | 1/2 polegada a 48 polegadas | Material | Liga de cobre e níquel (geralmente CuNi 70/30 ou CuNi 90/10) |
| ENCONSTRAÇÕES | Solução de extrusão | Cor | Metálico prateado com leve tom avermelhado |
| Prazo de preço | CIF CFR FOB EX-TRABALHO | Aplicativo | Indústrias marítimas, offshore e de processamento químico |
| tipo de cabeça | Redondo | Tecnologia de Processamento | Forjamento |
| Destacar | ISO certified nickel elbow fittings,Chemical resistant copper nickel elbow,Industrial grade 45/90 degree elbow |
||
Descrição de produto
ISO Certified Industrial Grade Nickel Elbow Fittings, 45/90 Degree , Chemical Resistance
Our industrial grade nickel elbow fittings are ISO certified, specifically designed for manufacturing plants and industrial applications requiring excellent chemical resistance. Crafted from high-quality nickel material, these fittings feature a 45-degree angle and socket weld connection, ensuring stable performance, strong structural strength, and reliable sealing in harsh industrial environments.
As ISO certified products, each nickel elbow undergoes strict quality control and compliance verification, meeting international industrial standards for chemical resistance, dimensional accuracy, and mechanical properties. The premium nickel material delivers outstanding resistance to a wide range of corrosive media, including acids, alkalis, and chemical solvents, making them ideal for chemical manufacturing, petrochemical, and pharmaceutical plant pipelines.

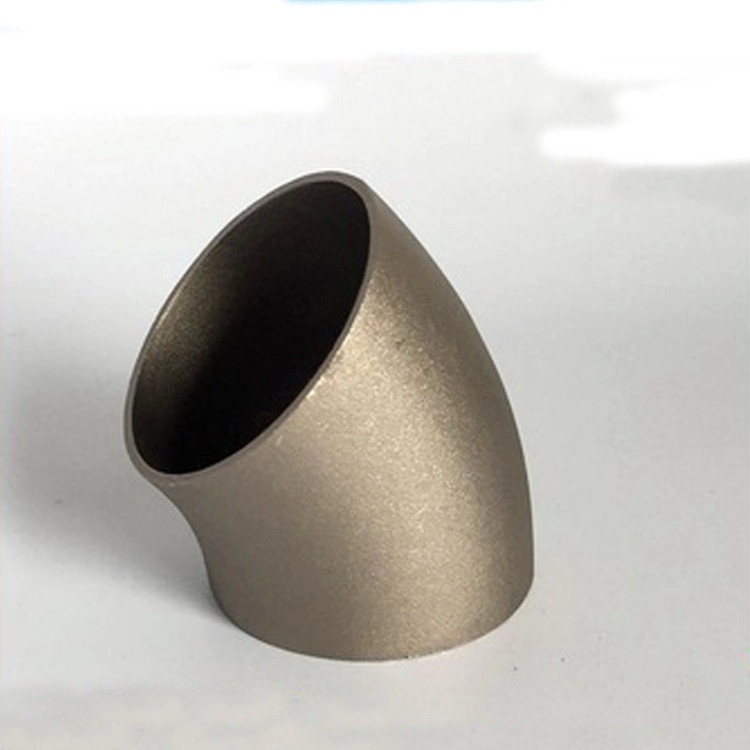

The 45-degree design enables smooth pipeline direction change, reducing flow resistance and ensuring efficient fluid transmission. The socket weld connection provides a firm, leak-proof joint, suitable for high-pressure and high-temperature industrial piping systems, and facilitates easy installation and maintenance in manufacturing plant scenarios.
Each elbow is precision machined and tested for chemical resistance, pressure-bearing capacity, and weld quality to guarantee long service life. Widely used in various manufacturing plants, these ISO certified industrial grade nickel elbow fittings offer a durable, safe, and cost-effective solution for corrosive industrial pipeline connections.
| Type | Copper Nickel Pipe Fittings |
| Standard | ISO |
| Size | 1/2’’~16’(Seamless);16’’~36’’(Welded) |
| Wall thickness | 2.0-19.0mm |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Nickel Alloy |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; |
| Duplex steel |
ASTM A182 F51/S31803/1.4462; |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; |

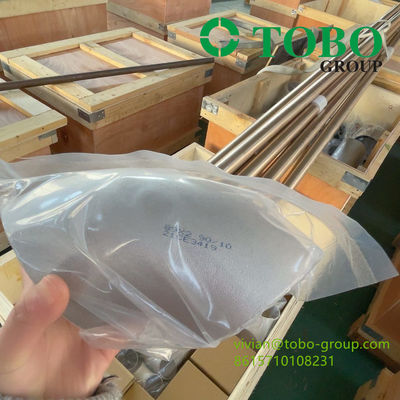

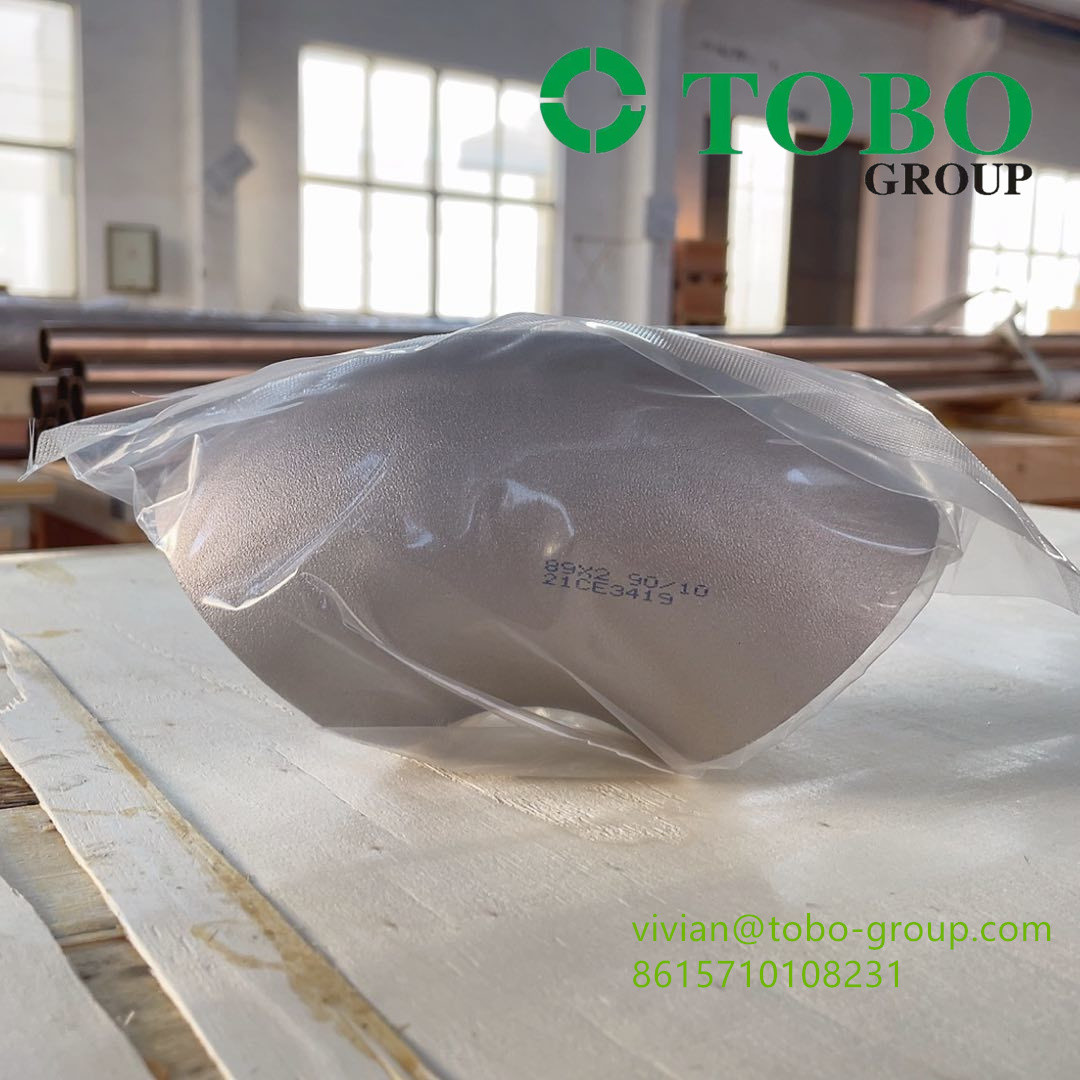

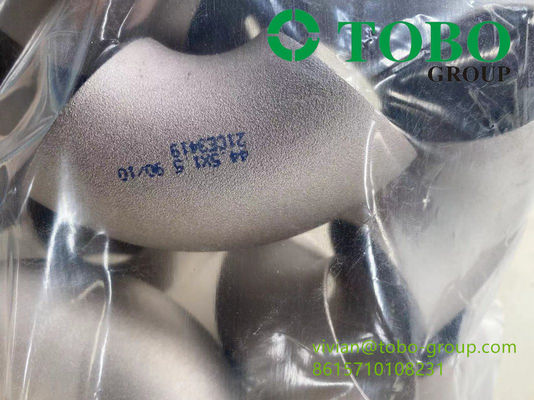

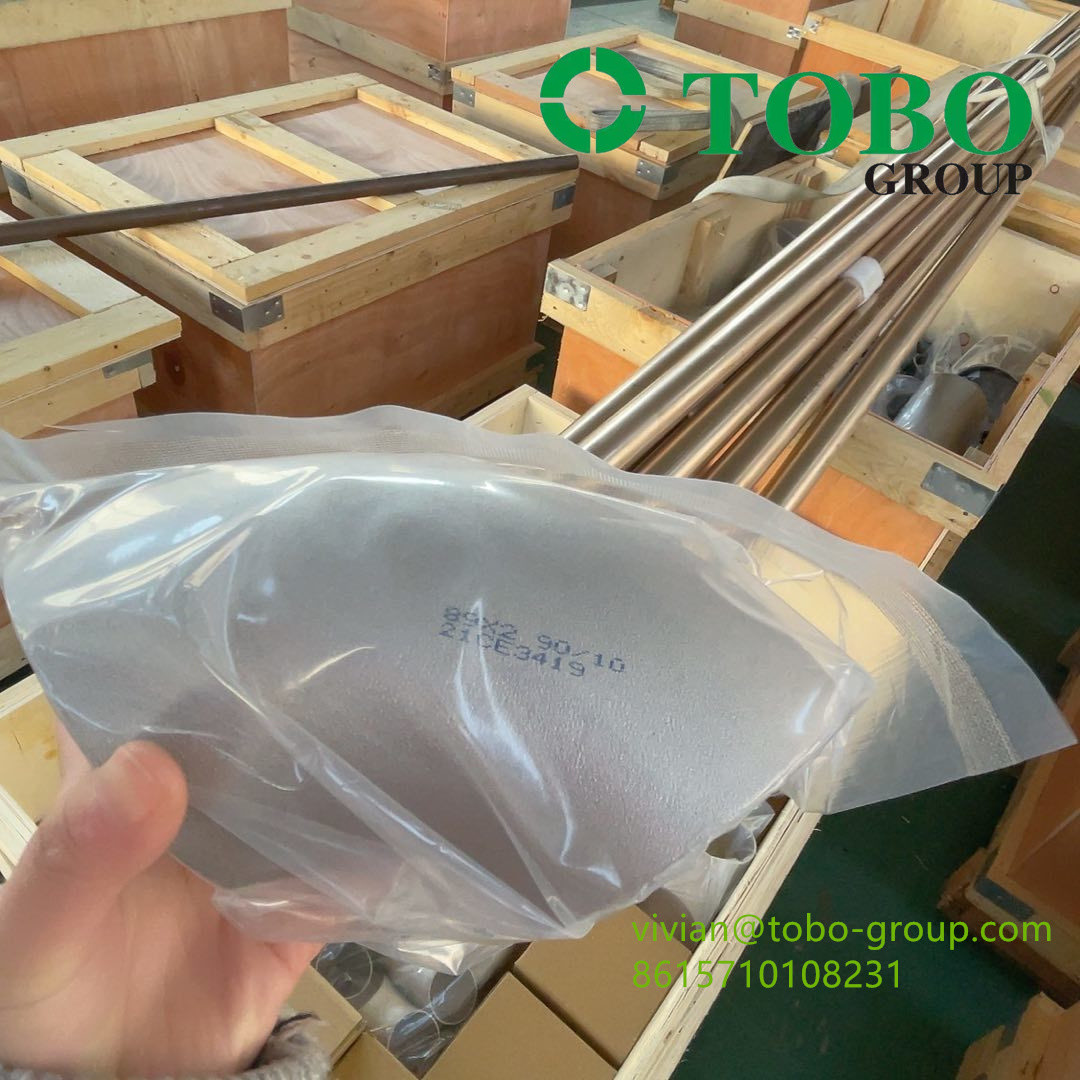

| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks |
Other materials and drawings are available. |
Introduction
Copper-Nickel Butt-Weld Pipe Fittings
Fittings weld flush against pipe, creating a strong connection that permits maximum flow. Fittings are also known as Pressure Class 200 fittings. They are copper-nickel, which has excellent resistance to stress cracking and better corrosion resistance than most stainless steel alloys. They are often used in highly-corrosive environments, such as salt water applications.
ANSI/ASME B16.9 ELBOW DIMENSIONS
ASME B16.9 Elbow Radius, 90 Degree Elbow Dimensions Chart, 45 Degree Elbow Dimensions
FAQ
1. who are we?
We are TOBO, founded in 1984,we offer sanitary valve,pipe and fitting,and pump with High precision,Anticorrosive,Safety.
We are TOBO, founded in 1984,we offer sanitary valve,pipe and fitting,and pump with High precision,Anticorrosive,Safety.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Weld Neck Flange,Blind Flange,Threaded Flange,Socket Weld Flange,Plate Flange
4. why should you buy from us not from other suppliers?
The company has introduced advanced CNC machine tools, spectrometers, material detectors, roughness detectors, ultrasonic flaw detectors and other production and testing equipment, and strictly requires the quality of products
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
